DARTJET introduces the DLX family of thermal inkjet print products based on Lexmark technology.
The DLX has the convenience and versatility that you've come to expect from thermal inkjet, with a significant boost in performance!
Our services
|
|
DLXP Series
 |
 |

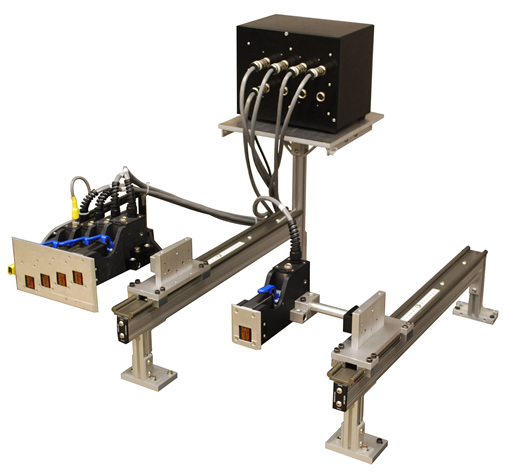

| DLXP Printing System 2" and 1/2" Configurations |

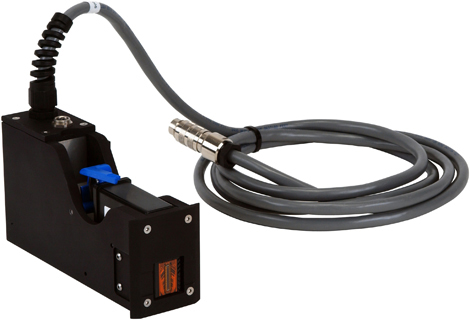

DLXP 1/2" Printing System |
FLEXIBLE, HIGH-PERFORMANCE INDUSTRIAL PRINTER
A fl exible, ready-to-run high-resolution modular printing system for a
broad range of Pharma, Package Printing, Variable Web, and complex
system industrial printing applications. Available as a complete solution
or on a modular basis.
VARIABLE PRINT SWATH FOR COMPLEX ENVIRONMENTS
The Universal Print Controller (UPC) can support up to 8 DLXP
printhead enclosures (PHE) and up to 8 product detects. The system
is highly fl exible and can be set up for either individual PHE ½” print
swaths or multiple PHEs can be bundled for broader swaths. In addition,
multiple UPCs can be combined to drive up to 32 PHEs and 32 product
detect options. The UPC supports printing left to right, right to left, and
inverted.
RELIABLE DESIGN FOR CHALLENGING ENVIRONMENTS
The DLXP Printing system is designed to accommodate either singleuse
or bulk cartridges. The PHE’s robust, heavy metal enclosure is
ideal for harsh, continuous use industrial environments. Electronics are
enclosed in a water-resistant module and include fully enclosed pogo
pin assembly to assure long-term connectivity and reliability of the
system.
EASY TO USE & MAINTAIN
The DLXP printing system is easy to set up, use, and maintain. Compatibility with commercially available application software provides
for a complete, out-of-box solution that can be up and running in a
short time.
More information...
DLXP PRINTING SYSTEM
SPECIFICATIONS
PRINT SWATH
1/2” Imaging Modules, expandable to
16” and beyond
Image stitching facilitates printing up
to 16”
NOZZLES
640 nozzles per individual cartridge/
PHE
20,480 nozzles for a 16” system
MAXIMUM PRINTING SPEED& RESOLUTION (@ 24 KHZ)
760 ft./min. in 158 x 600 dpi
540 ft./min. in 221 x 600 dpi
420 ft./min. in 284 x 600 dpi
270 ft./min. in 442 x 600 dpi
200 ft./min. in 600 x 600 dpi
PRINTING ORIENTATION
Horizontal (down) or vertical (Side)
jetting capability
APPLICATIONS
Mailing & Addressing
Variable Data Web Presses
Sheet-Fed Variable Data & Graphics
Envelope Printing
Package & Tray Printing
Pharma
BULK INK SUPPLY (OPTIONAL)
Used with Lexmark’s industrial bulk
cartridges
Ink tank garage & electronics
Intermediate ink tanks
Unique, High-Grade Ink Tubing& Connectors
INK TYPES & MEDIA
Broad portfolio of TIJ inks available
for a variety of applications and media |
VARIABLE VOLTAGE FIRING
Variable voltage fi ring to support
solvent inks
PRINTHEAD MAINTENANCE
Manual
Patent pending algorithms to support
longer open time
PRINTABLE IMAGES
Text
Barcode
Graphics
OPERATING ENVIRONMENT
16-32C, 8-80% RH
DIMENSIONS (HxWxD)
PHE: 3-3/4” x 1-5/8” x 7”
Interconnect/Power Unit:
8” x 10” x 7”
Bulk Ink Delivery System:
6-1/8” x 3-1/2” x 9-3/8”
POWER REQUIREMENTS
Range Line Voltage: 100-240 VAC
Line Frequency: 50 / 60 Hz
SYSTEM REQUIREMENTS
PC with Windows XP
2 Encoder (for variable speed
applications)
Up to 32 product detects
Photocue/Trigger
INTERFACE
USB 2.0 High Speed (one per UPC) |
LEXMARK TIJ ADVANTAGE
DLXP is designed to work with Lexmark’s TIJ. Industrial-class, ½” swath
single-use and bulk cartridges are available as well as Lexmark’s bulk
ink systems to provide the Lexmark TIJ Advantage:
− Approx. 2X the throw distance vs. leading TIJ competitor allows
for ¼” gap and increased reliability with variable media thicknesses
(based upon ink type and media used)
− Approx. 2X the rated speed vs leading TIJ competitor with jetting
frequencies up to 24 kHz
− Approx. 2X nozzle count vs. leading TIJ competitor provide for
increased reliability and print quality.
− Dual rows, redundant nozzles for more reliable printing
− Print up to maximum of 760 ft/min (3.9 m/s) @ 150 x 600 dpi
|
|
