DARTJET introduces the DLX family of thermal inkjet print products based on Lexmark technology.

The DLX has the convenience and versatility that you've come to expect from thermal inkjet, with a significant boost in performance!

Our services

DLX Series

The DLX print head module is based on thermal drop-on-demand print head technology from Lexmark.

The DLX module consists of a print controller and one or more cartridge stalls, packaged in a compact industrial chassis. Ink is supplied via disposable cartridges which may be connected to a bulk ink delivery system. Ink may be purchased from DARTJET or our distributors.

DARTJET introduces the DLX family of thermal inkjet print products based on Lexmark technology. The DLX has the convenience and versatility that you’ve come to expect from thermal inkjet, with a significant boost in performance!

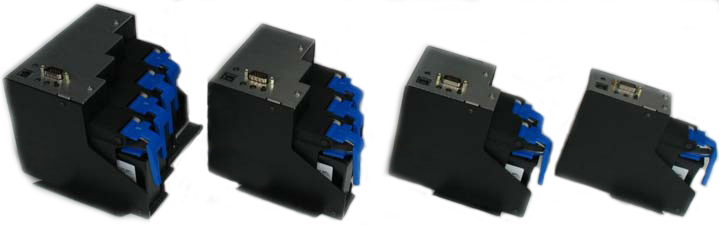

Above: TOP mount

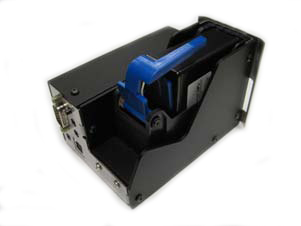

Left: Side mount

Side mount gets very low on the side of a box mounted over a conveyor.

SPECIFICATIONS:

GENERAL

Inkjet Technology - Thermal drop-on-demand

Print Controller - Integrated in Print Head Module

Print Height - 0.5", 1.0", 1.5", 2.0" per head - Up to 16 heads per print system

Print Resolution - Configurable to 600 x 600 dpi

Firing Mode - Binary

Drop Volume - 24 pL

Max Transport Speed - 600x600 dpi @ 40 ips (61 m/min) - 600x300 dpi @ 80 ips (122 m/min) - Max speeds doubled in Draft Mode

Max Ink Throw Distance - Up to 6mm

Min Page Spacing - 0.125"

Ink Source - Standalone cartridges, bulk-supplied cartridges

Ink Types - Water-based, solvent-based

Ink Colors - Black, spot color

Print Orientations - Print down or horizontally

Print Head Configurations - Standard and low profile configurations

Cartridge Features - Two rows of in-line jets (clogged jets less noticeable) - Raised nozzle plate features (protects from head crashes)

Print Head Features - Off-line printing, automatic pen deactivation, buffers multiple pages, real-time clock for accurate date/time printing

Print Data Types (DARTJET Draw) - Text, barcodes (70+ types), graphics, variable database fields, auto-numbers, auto-data/time

EXTERNAL I/O

Data Interfaces - USB 2.0, RS-232 Serial

Power and External Signal Interface - HD15 connector carries power, encoder, trigger, RS-232

Power Requirement 10.8V, 3.0A per cartridge

Encoder Input - Externally generated from shaft encoder or motor steps - Internally generated by controller (time-based)

Print Trigger Input - Externally generated - Internally generated by controller (time-based)

Auxiliary Outputs - 3 outputs per head controllable via software application

LED Feedback - Power, trigger, ecoder, fault

Software Options (USB Mode) - DARTJET Draw, FlexSystems FlexMail, customer app. (via DLL)

Software Options (RS-232 Mode) - Customer application (via serial protocol)
